4 Port Stainless Steel Manifold Assembly - Pressure Gauge & Air Vent

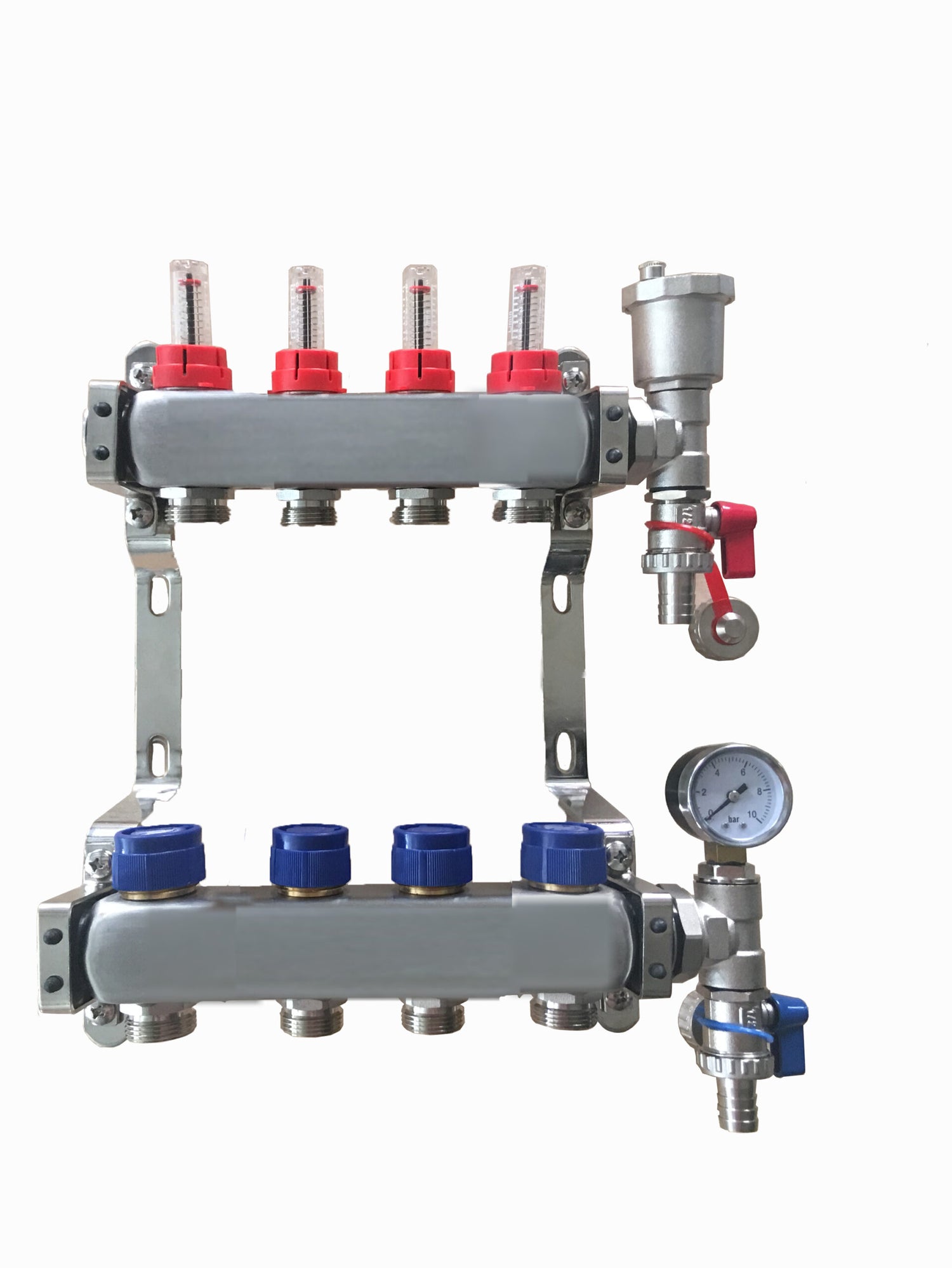

Professional 4 Port Stainless Steel Manifold Assembly

Premium pre-assembled stainless steel manifold for underfloor heating and radiator systems. Complete with auto air vent, 10 bar pressure gauge, flow meters (0-5 l/m), and fill/drain valves. Ready to install with 210mm flow/return spacing and 50mm port spacing.

Key Features:

• Pre-Assembled Unit – Ready to install, saves installation time
• Auto Air Vent (AAV) – Automatic air removal for system efficiency
• 10 Bar Pressure Gauge – Monitor system pressure accurately
• Flow Meters – 0-5 l/m indicators for precise flow control
• Fill & Drain Valves – Integrated for easy maintenance
• Stainless Steel Construction – Durable, corrosion-resistant
• Standard UK Spacing – 210mm flow/return, 50mm port spacing

Technical Specifications:

• Ports: 4 port configuration
• Material: Premium stainless steel
• Flow/Return Spacing: 210mm (standard UK)
• Port Spacing: 50mm centre to centre
• Pressure Gauge: 10 bar
• Flow Meters: 0-5 l/m indicators
• Pipe Compatibility: Up to 20mm
• Inlet: 1" threaded for isolation valves
• Control: Manual adjustment or actuator compatible
• Weight: 11.2 lbs

Applications:

Essential for 4-zone underfloor heating systems or radiator installations. Perfect for residential properties with four heating zones requiring independent flow control. Compatible with ExpressUFH mixing units and various pipe sizes up to 20mm. Ideal for both new installations and system upgrades.

Why Choose This Manifold?

Pre-assembled design saves installation time and ensures correct component integration. Stainless steel construction provides long-lasting corrosion resistance. The 210mm flow/return spacing is standard UK sizing, ensuring compatibility with various mixing units. Flow meters enable precise zone balancing, whilst the auto air vent maintains system efficiency. Modulating pins accept manual adjustment or electronic actuators for flexible control options.

Perfect for: 4-zone UFH systems, radiator installations, residential heating, system upgrades, mixing unit compatibility, and any application requiring professional-grade manifold with integrated monitoring and control.
