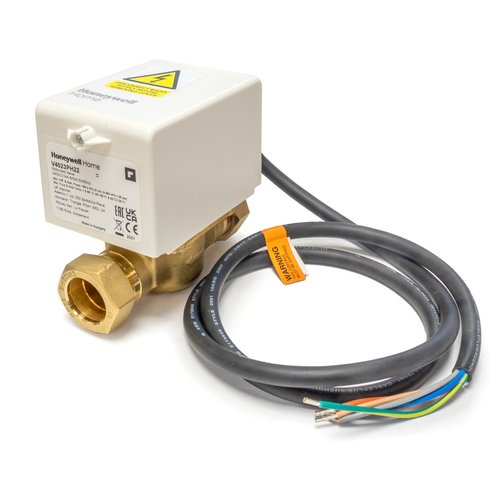

22mm 2-Port Motorized Zone Valve - Detachable Head

Professional 22mm 2-Port Motorized Zone Valve with Detachable Head

High-quality motorized zone valve for precise control of heating zones in underfloor heating and radiator systems. Features detachable head and pre-wired plug-and-play cable for easy installation.

Key Features:

• Detachable Head Design – Easy clip-on head for simple maintenance and replacement
• Plug & Play Installation – Pre-moulded cable supplied, no wiring work required
• Metal Manual Lever – Robust manual override for strength and stability
• Fast Response Time – Quick actuation for efficient temperature control
• Fail-Safe Operation – Reliable performance with safety features
• Zone Control Ready – Perfect for multi-zone heating systems
• Professional Grade – Built for long-lasting performance

Technical Specifications:

• Connection Size: 22mm compression
• Ports: 2-port (on/off control)
• Power Supply: 220-240V, 50/60Hz, 5W
• Fuse Rating: 3A maximum
• Auxiliary Switch: 3A 250VAC
• Water Temperature Range: 5°C to 88°C
• Max Differential Pressure: 0.69 bar
• Cable Length: 1 metre
• Weight: 1.1 lbs

Applications:

Ideal for underfloor heating zone control, radiator circuits, and multi-zone heating systems. The 2-port design provides simple on/off control, making it perfect for individual room temperature management and energy-efficient heating.

Installation Benefits:

The detachable head allows for easy servicing without draining the system, whilst the pre-wired cable eliminates complex electrical work. The metal manual lever provides reliable manual override when needed.

Perfect for: UFH zone control, radiator circuits, multi-zone heating systems, and professional heating installations requiring reliable motorized valve control.
