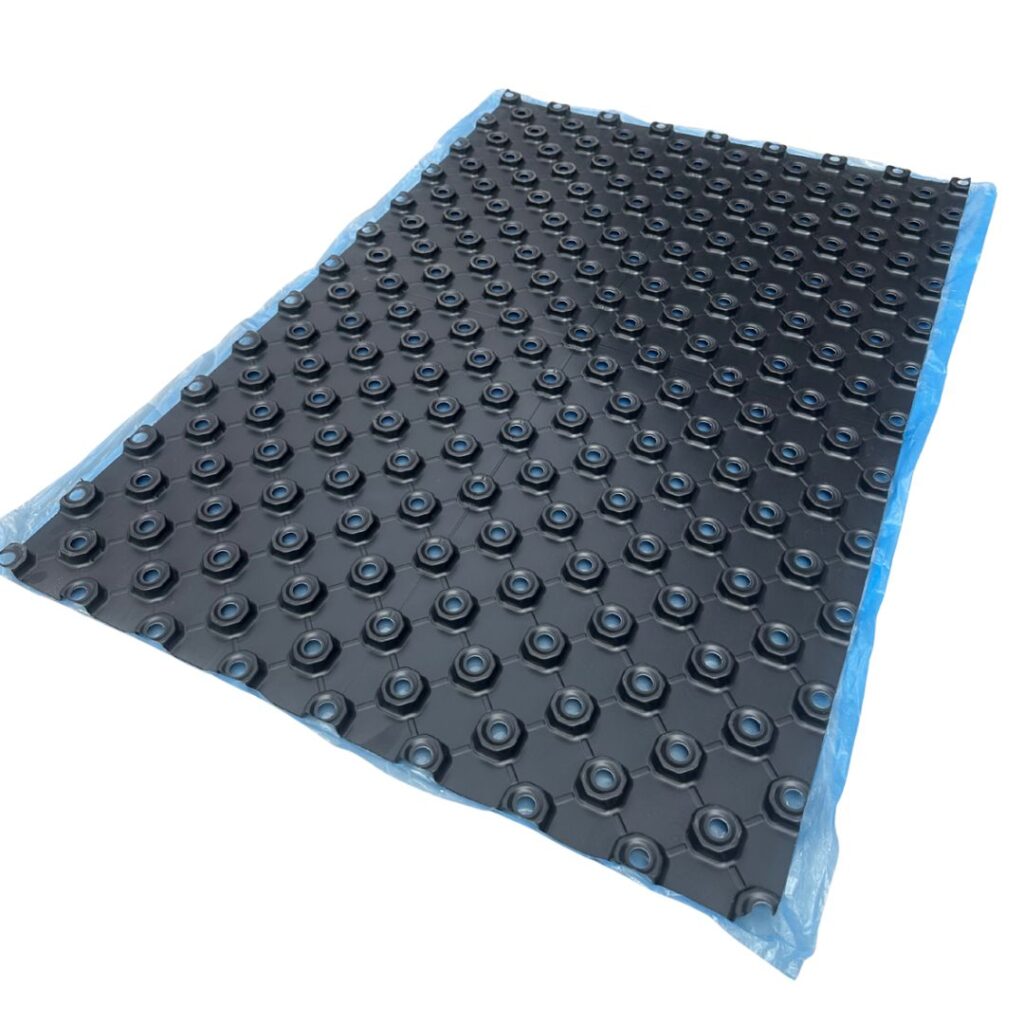

Plastic Castellated Floor Panel. Each Panel 1220 x 820 x 15mm ( = 1m²/Panel). For 12mm pipe

The Underfloor Heating Plastic Castellated Floor Panel is a highly practical and efficient solution for 12mm pipe underfloor heating systems, with added features that enhance its usability and performance. Lets break down its key aspects:

1. Castellated Design for 12mm Pipe: This panel features a castellated surface, designed specifically to hold 12mm pipes securely in place. The raised studs provide excellent grip, preventing movement of the pipes during installation, and ensuring consistent heat distribution.

2. Multiple Pipe Centre Options (50, 100, 150, and 200mm): Like the ExpressUFH panel, this product allows for flexible pipe spacing at 50mm, 100mm, 150mm, and 200mm centres. This versatility makes it easy to tailor the heating system according to the specific heat requirements of different areas, whether its a smaller room or a larger open space.

3. Panel Size (1220 x 820 x 15mm): Measuring 1220mm by 820mm, each panel covers 1m². Its slim 15mm thickness offers a low-profile design, which is beneficial in projects where height buildup needs to be minimized. This size and thickness allow for rapid installation without compromising floor height.

4. Screed Holes for Strong Bonding: One of the standout features of this panel is the inclusion of screed holes. These perforations allow the screed to flow through the panel, creating a stronger bond between the screed layer and the panel itself. This improves the overall stability of the floor, ensuring the pipes remain fixed in place during and after the screed application.

5. Self-Adhesive Backing: The self-adhesive feature simplifies installation even further. With adhesive backing, the panels can be quickly laid in place without the need for additional fixings or tools. This not only speeds up the process but also ensures that the panels remain securely fixed to the subfloor during the screeding phase or any movement during pipe fitting.

6. Durable and Lightweight: Made from high-quality plastic, this panel is both durable and lightweight, offering long-term performance while being easy to handle and install. Its construction ensures that it can withstand the demands of underfloor heating, including the application of screeds and floor coverings.
